Lapse rate

Lapse rate#

import matplotlib.pyplot as plt
from typhon import plots

import konrad


plots.styles.use('typhon')

After each timestep konrad will adjust the atmospheric temperature profile to follow a specified temperature lapse rate. This lapse rate will prescribe the vertical temperature structure up to the convective top. The latter is diagnosed interactively as the level at which no radiative cooling is left to fuel convection. From there on, the atmosphere follows a pure radiative equilibrium.

Here, we will have a look at some of the different options in konrad.lapserate.

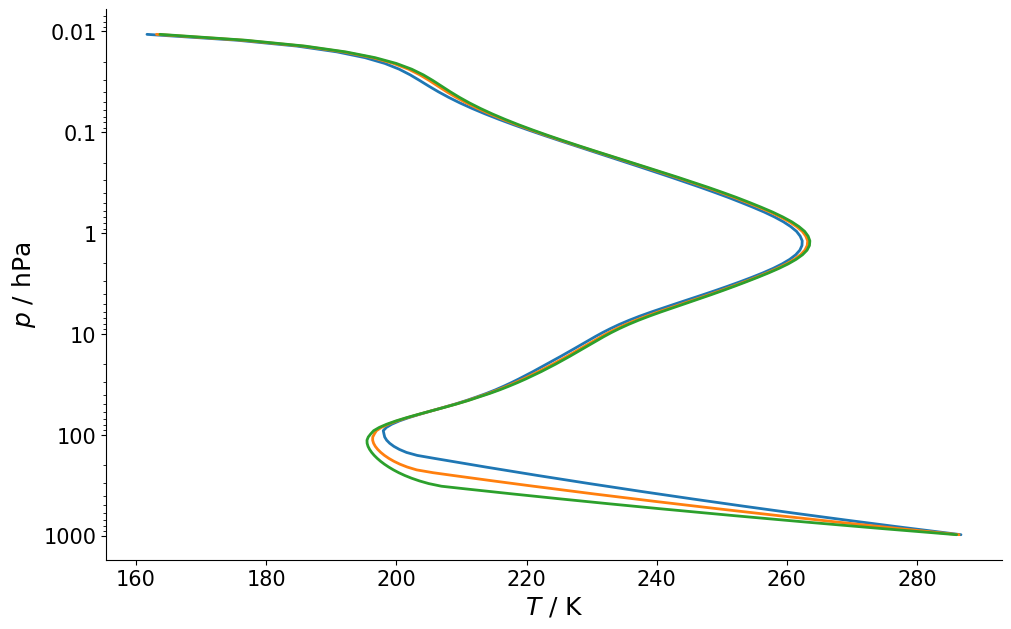

Fixed temperature lapse rate#

One can specify an arbitrary temperature lapse rate.

plev, phlev = konrad.utils.get_pressure_grids(1000e2, 1, 128)
atmosphere = konrad.atmosphere.Atmosphere(phlev)

fig, ax = plt.subplots()
for lapserate in [6.5, 8, 10]:
    lapserate = konrad.lapserate.FixedLapseRate(lapserate / 1000)  # K/km -> K/m

    rce = konrad.RCE(
        atmosphere,
        surface=konrad.surface.FixedTemperature(temperature=288.),  # Run with a fixed surface temperature.
        lapserate=lapserate,  # Here, we pass the lapserate component that we just created
        timestep='12h',  # Set timestep in model time.
        max_duration='100d',  # Set maximum runtime.
    )
    rce.run()  # Start the simulation.

    plots.profile_p_log(rce.atmosphere['plev'], rce.atmosphere['T'][-1, :])
ax.set_xlabel(r"$T$ / K")
ax.set_ylabel("$p$ / hPa")

Text(0, 0.5, '$p$ / hPa')
_images/e14f30fbfc00a33aeeca74e04366ed127032f4561c2dc73af192db17a4951ff4.png

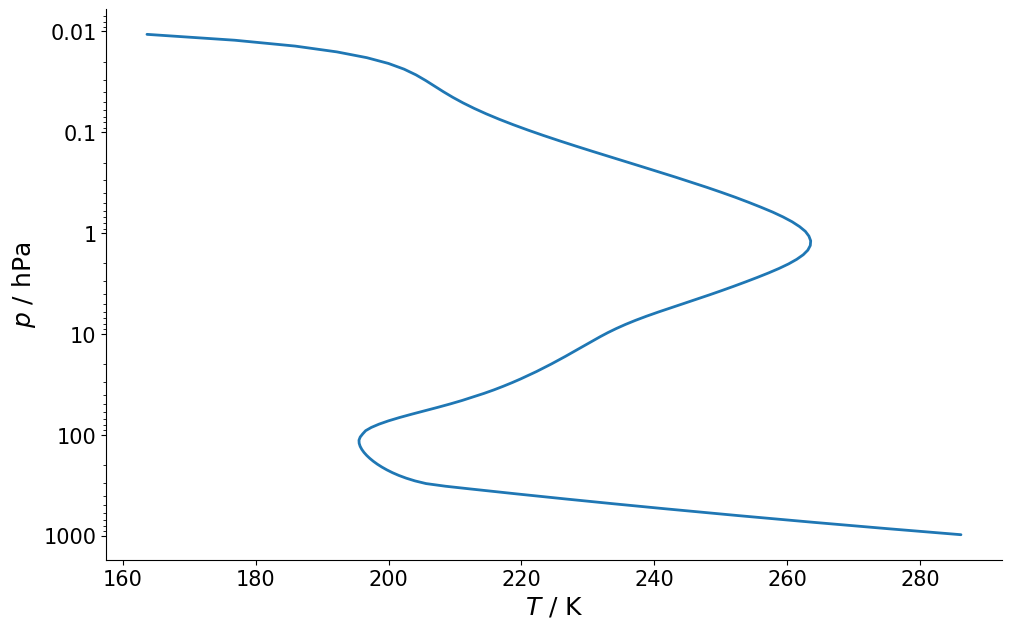

Dry-adiabatic lapse rate#

There is also a convenience class to represent the dry adiabatic lapse rate.

plev, phlev = konrad.utils.get_pressure_grids(1000e2, 1, 128)
atmosphere = konrad.atmosphere.Atmosphere(phlev)

rce = konrad.RCE(
    atmosphere,
    surface=konrad.surface.FixedTemperature(temperature=288.),  # Run with a fixed surface temperature.
    lapserate=konrad.lapserate.DryLapseRate(),  # Run with dry adiabatic lapse rate
    timestep='12h',  # Set timestep in model time.
    max_duration='100d',  # Set maximum runtime.
)
rce.run()  # Start the simulation.

fig, ax = plt.subplots()
plots.profile_p_log(rce.atmosphere['plev'], rce.atmosphere['T'][-1, :])
ax.set_xlabel(r"$T$ / K")
ax.set_ylabel("$p$ / hPa")

Text(0, 0.5, '$p$ / hPa')
_images/9895cbc0082e0f78424d0ee3bc7aa387efecff9748c106a74f62837f6196bf05.png

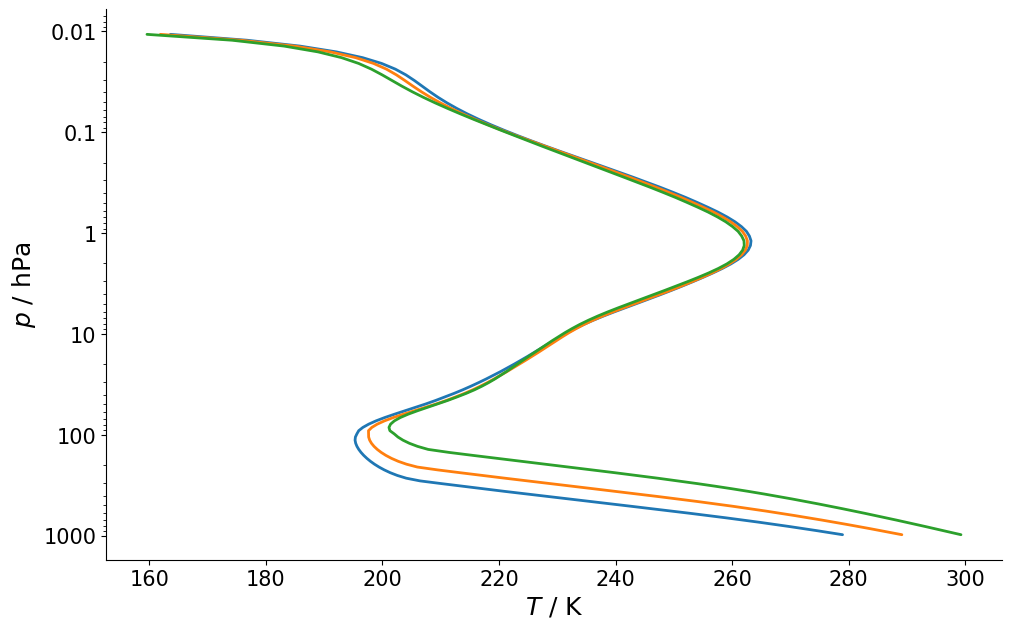

Moist-adiabat#

There is a special class that will compute the moist-adiabatic lapse rate based on the current temperature profile. This way, we can account for a changing lapse rate in a warming climate

plev, phlev = konrad.utils.get_pressure_grids(1000e2, 1, 128)
atmosphere = konrad.atmosphere.Atmosphere(phlev)

fig, ax = plt.subplots()
for Ts in [280, 290, 300]:
    rce = konrad.RCE(
        atmosphere,
        surface=konrad.surface.FixedTemperature(temperature=Ts),  # Run with a fixed surface temperature.
        lapserate=konrad.lapserate.MoistLapseRate(),  # Here, we pass the lapserate component that we just created
        timestep='12h',  # Set timestep in model time.
        max_duration='100d',  # Set maximum runtime.
    )
    rce.run()  # Start the simulation.

    plots.profile_p_log(rce.atmosphere['plev'], rce.atmosphere['T'][-1, :])
ax.set_xlabel(r"$T$ / K")
ax.set_ylabel("$p$ / hPa")

Text(0, 0.5, '$p$ / hPa')
_images/eac9d60d0980f347d8529c8eacf5f9dc1e714644b097c88715ce03bb6d9b1112.png
